TRUPER 105 photo of the unit

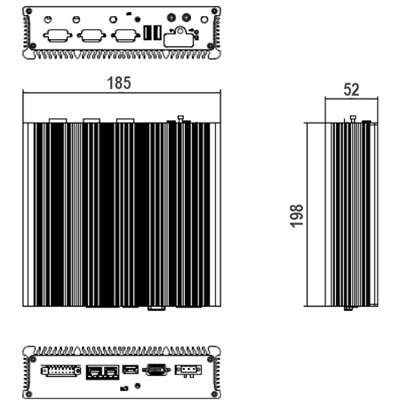

TRUPER105 photo of drawing of the unit

TRUPER 105

Commercial off-the-shelf (COTS) High-Performance Rugged Computer System

The TRUPER® family offers a range of affordable processing solutions using the most current computing and packaging technology. The TRUPER 105 provides a small compact enclosure suited for vehicle, ship or aircraft application of the latest COTS hardware technology. Within the chassis natural cooling is used to provide efficient transfer from the internal electronics to the enclosure. This ensures heat stress of the components is kept to a minimum. The unit is designed to ensure reliable operation in challenging and high altitude environments where the unit is subjected to shock and vibration.

Download Product PDF

The TRUPER 105 is a rugged high performance computer platforms for image, video and signal processing based on industrial PC hardware which is packaged in rugged, sealed enclosures for use in harsh environment applications. The TRUPER 110 uses high performance Intel Core i7 CPUs and can also include the latest NVIDIA GPUs to support complex graphics requirements or high performance computing applications. Our rugged PCs have been installed in air, maritime, land and vehicle platforms, both manned and unmanned. Please refer to the specifications tab for TRUPER 109 product details or contact us directly at info@vision4ce.net or call us at +1.410.384.9181. Please also check out our other rugged TRUPER and GRIP PC products. We support customization and quantity discounts.

Component Specifications

Processor:
• Intel Atom E3845 1.91 GHz processor

Memory & Storage:
• DDR3L SO-DIMM x2, 2GB, Options to 8 GB
• SATA 2.0 x1 for internal 2.5” HDD x1, mSATA x1

Display:
• VGA, HDMI

Controller:
• Ethernet: Intel i210-IT x2
• Graphic: Intel integrated GMA3650 graphic engine
• Audio: Realtek ALC886 HD codec

I/O:
• LAN: GbE RJ45 x 2
• Serial:
o DB9 Male x3 support RS-232/485 with RI/5V/12V
◦ One DB9 optional for CAN Bus J1939 & J1708
• Digital:
◦ 4x DI 12V level
◦ 4x DO 12V level
◦ 2x DI (from MCU) 3.3V Level, 1x relay (2A, 12V/24V)
◦ 12VDC power output
• USB: Type A x1 for USB 3.0,Type A x1 for USB 2.0

Power Input:
• DC Input: 9~36V for +12V and +24V- vehicle power
• 3-pin terminal block (+, -, ignition)

Hardware Monitor:
• Integrated watchdog timer 1~255 level

Environmental:
• Operating Temp: -5 to 45°C
• Storage Temp: -20 to 75°C
• Relative Humidity: 5 to 95% (non-condensing)

Certifications:
• CE, FCC Class A, E13, RoHS

OS Support:
• Windows 7/ Embedded; Windows 8 Embedded, Linux kernel 2.6.X or later

Expansion:
• 2x Mini-PCIe socket, each w/dual SIM sockets, 1x half-size Mini-PCIe socket for Wi-Fi, 3G, 4G/LTE opt.

Footprint:
• Dimensions: 198 x 52 x 185 mm

Options and Applications

Ordering Information:
Model: V4/TRUPER/105/101
